How to convert in­ter­na­tion­al­ised domain names with Punycode

Punycode is a stand­ard­ised encoding method that allows Unicode char­ac­ters to be mapped using a limited ASCII character set, meaning that in­ter­na­tion­al­ised domain names (IDN) can also contain non-ASCII char­ac­ters such as umlauts, for example.

How was the encoding method developed?

In 2003, Punycode was stand­ard­ised by the Internet En­gin­eer­ing Task Force (IETF) as syntax for encoding In­ter­na­tion­al­ized Domain Names in Ap­plic­a­tions (IDNA). The IETF defines a domain name as an IDN if it contains special char­ac­ters such as dia­crit­ics, letters or char­ac­ters that are not found in the Latin alphabet (e.g., umlauts in German). Such char­ac­ters cannot be processed by basic protocols such as the Domain Name System (DNS). For this example, we’ll use a domain name in German. Although, following the in­tro­duc­tion of IDNs, müller-büromöbel (Müller’s office furniture) is allowed under the top-level domain .de, it can only be processed by encoding the non-base char­ac­ters, for example, in the context of name res­ol­u­tion. Numerous internet protocols are based on English and therefore only support the limited ASCII character set.

In order to ensure com­pat­ib­il­ity between IDNs and older internet standards, the IETF has pre­scribed a method for encoding in­ter­na­tion­al­ised domain names using the char­ac­ters that were already permitted. This stand­ard­ised encoding procedure is known as Punycode.

How does Punycode encoding work?

An overview of the Punycode process

Punycode is defined by the IETF in RFC 3492 as a possible ap­plic­a­tion of the general coding algorithm known as Boot­string. The Boot­string algorithm enables the mapping of character strings that comprise arbitrary character sets with a limited selection of elements. The de­vel­op­ment of the coding procedure is based on six prin­ciples. In Punycode encoding, these elements are called base char­ac­ters, which consist of lowercase letters, digits, and the hyphen (-). The de­vel­op­ment of the coding method is based on six prin­ciples.

• Com­plete­ness: Each output string can be mapped to a sim­pli­fied string using a boot string.
• Unique­ness: Assigning the output string to the re­spect­ive Boot­string encoding is unique. Each Punycode can be assigned exactly one ASCII coun­ter­part and vice versa.
• Re­vers­ib­il­ity: A Boot­string encoding can be reversed at any time without any in­form­a­tion loss.
• Ef­fi­ciency: The encoded string is – if at all – only minimally longer than the output string.
• Sim­pli­city: Boot­string uses simple encoding and decoding al­gorithms.
• Read­ab­il­ity: Only char­ac­ters that cannot be rep­res­en­ted in the target character set are encoded. All other char­ac­ters remain unchanged.

Punycode specifies Boot­string according to the re­quire­ments for in­ter­na­tion­al­ised domain names. This should enable the Unicode char­ac­ters to be mapped via the pre­vi­ously permitted base char­ac­ters.

Punycode example

The following example shows how the encoding works:

IDN: müller-büromöbel

The IDN müller-büromöbel contains the char­ac­ters ü and ö, which are not included in the pre­vi­ously permitted character set for domain names. As a result, they must be encoded via Punycode to ensure com­pat­ib­il­ity.

Step 1: Nor­m­al­isa­tion

In the first step, the encoding procedure enables nor­m­al­isa­tion of the output character string. All uppercase letters are replaced by cor­res­pond­ing lowercase letters.

Step 2: Erad­ic­a­tion of all non-basic char­ac­ters

In the second step, all non-basic char­ac­ters are erad­ic­ated. These are then added to the domain name in coded form and separated by a hyphen.

If the Punycode syntax is used to encode internet addresses, each result string is provided with an ACE prefix (short for ASCII-com­pat­ible encoding):

ACE prefix: xn–

The ACE prefix ensures that domain names con­tain­ing hyphens are not mis­in­ter­preted as in­ter­na­tion­al domain names.

This results in the following encoding for the IDN müller-büromöbel:

ACE: xn–mller-brombel-rmb4fg

The algorithm un­der­ly­ing the Punycode procedure is re­mark­able. It ensures that, despite the con­ver­sion, domain labels don’t exceed the maximum length of 63 char­ac­ters.

During the encoding process, Unicode char­ac­ters are not converted one-to-one into ASCII char­ac­ters. Instead, the algorithm de­term­ines a string based on the distance between the erased char­ac­ters and the position of the char­ac­ters in the output string.

Related to the example shown above, the string rmb4fg indicates that mller-brombel must be sup­ple­men­ted by the Unicode char­ac­ters ü and ö in the second and seventh position.

Ex­cep­tions to the rule

De­vi­ations occur if the domain name doesn’t contain any non-base char­ac­ters or if it only contains non-base char­ac­ters.

A domain name that contains only non-base char­ac­ters shows only the encoded string and the ACE prefix after being encoded. A domain name such as παράδειγμα (Greek for ‘example’) cor­res­ponds to the following encoding:

IDN: παράδειγμα

ACE: xn–hxajbheg2az3al

If a domain name contains only base char­ac­ters, Punycode is not used. Ac­cord­ingly, no ACE prefix is appended. Coding is not necessary in this case because basic internet protocols can already un­der­stand the domain name.

If you consider the Fully Qualified Domain Name (FQDN) as a whole, each label (top-level domain, second-level domain, third-level domain, etc.) is encoded sep­ar­ately. A domain likeпример.бг (Bulgarian for ‘example.bg’) could be encoded as follows

IDN: пример.бг

ACE: xn–e1afmkfd.xn–90ae

The following table gives an overview of the different variants of the Punycode syntax.

Users usually resort to freely available Punycode con­vert­ers for encoding in­ter­na­tion­al­ised domain names.

Puny encoding with emoji domains

Not only in­ter­na­tion­al­ised domain names but also emoji domains can be realised via Punycode. For this to work however, the top-level domain, has to permit the use of emojis, and the desired emoticon needs to be in the Unicode standard.

Emoji domains are tech­nic­ally processed as Punycode, but in theory should be presented to the user as a com­bin­a­tion of text and emoticons.

Emoji domain: https://i❤.ws/

ACE: https://xn--i-7iq.ws/

Prac­tic­ally no standard browser im­ple­ments this at present. If you enter an emoji domain in Firefox, Chrome, Safari, Edge, or Opera, the address bar only shows the ACE string.

Are there free Punycode con­vert­ers?

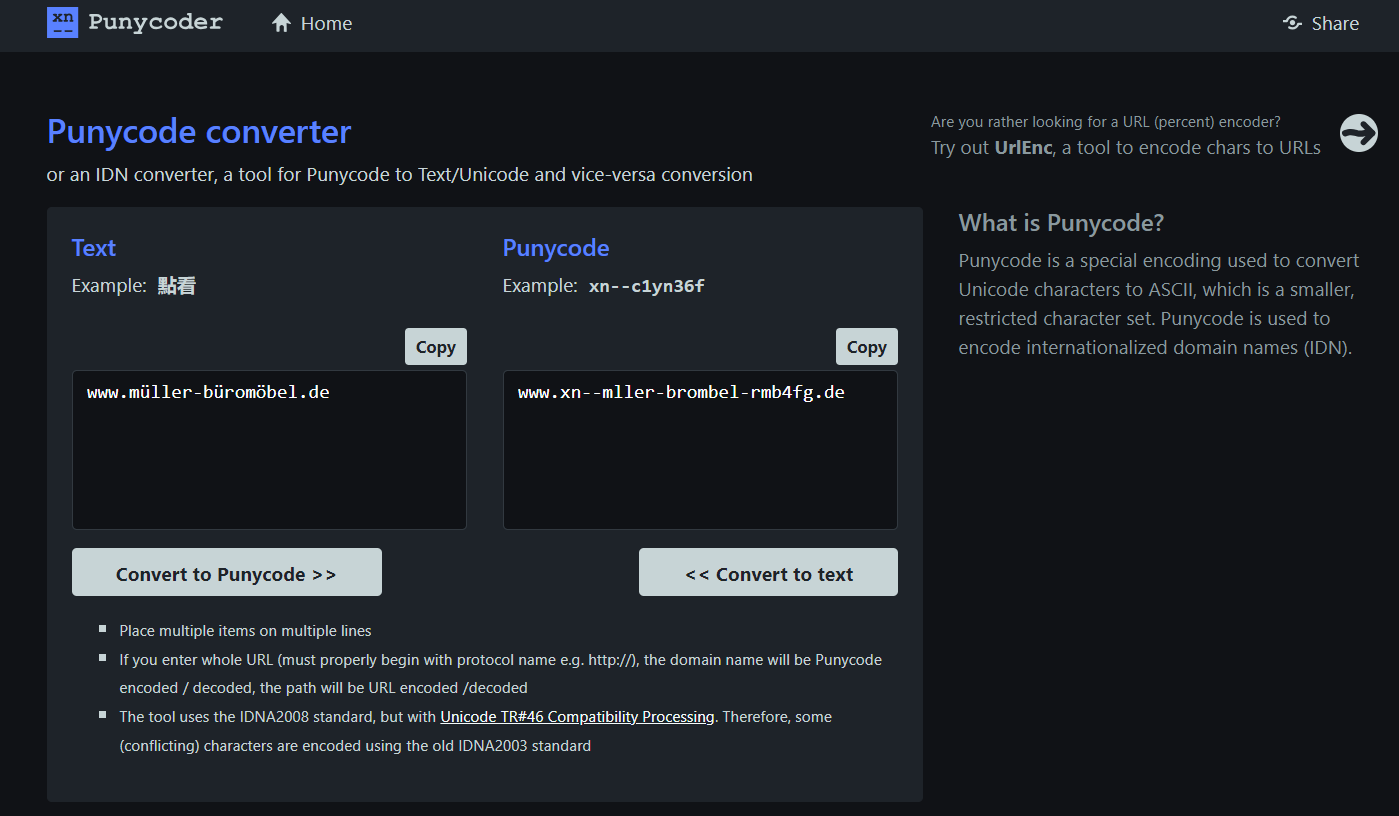

Free Punycode gen­er­at­ors that transfer IDNs into an ASCII-com­pat­ible form can be found on various websites. One example is Punycoder.

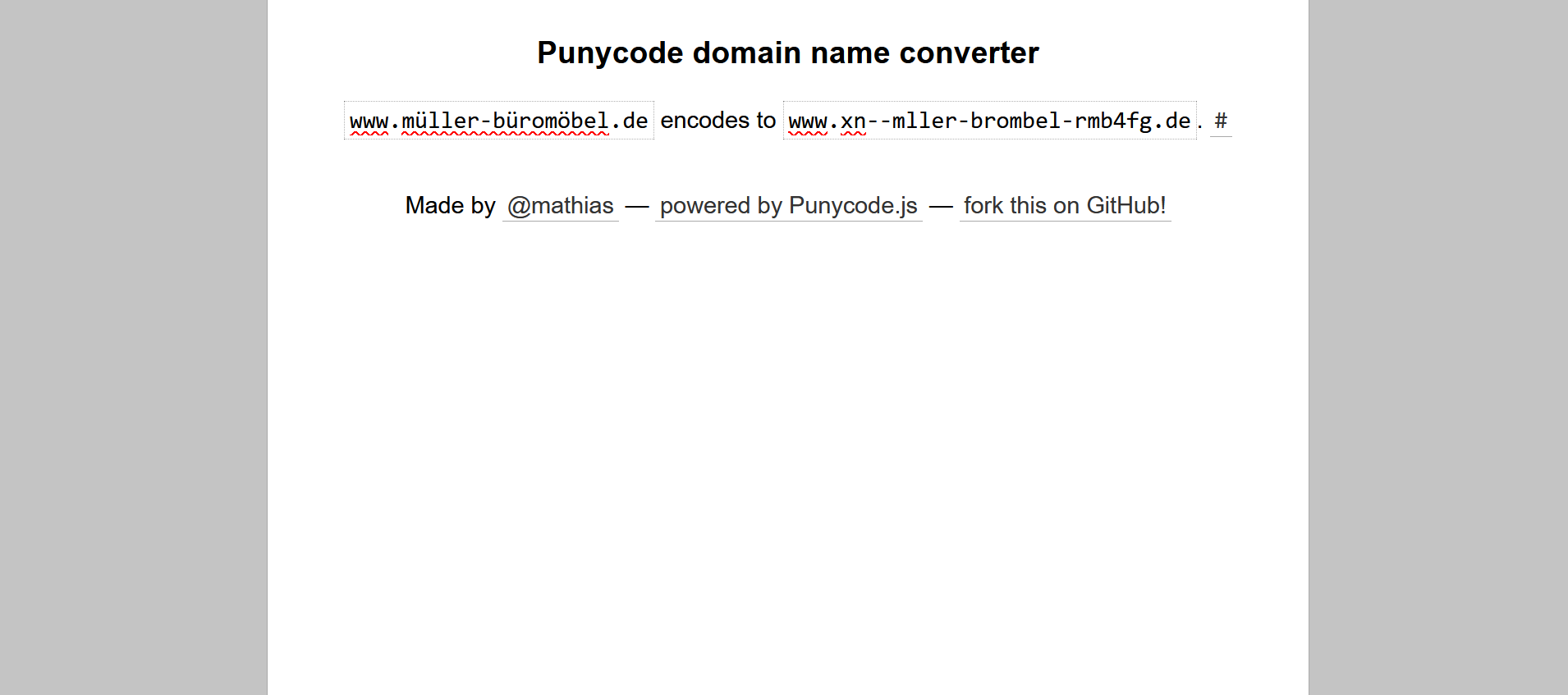

For IDNs of other TLDs, the Punycode converter by Mathias Bynens based on punycode.js is a good choice.

Does Punycode pose a security risk?

Punycode becomes a security risk in the case of ho­mo­graph­ic phishing – cy­ber­at­tacks where criminals use the similar ap­pear­ance of different char­ac­ters to lure un­sus­pect­ing victims to fake websites. Blogger Xudong Zheng shows what a phishing attack looks like using the following Punycode domain https://www.xn--80ak6aa92e.com/ as an example. This leads internet users to a website with the following IDN: https://www.аррӏе.com/

The URL provided is not the official website of the Cali­for­nia tech­no­logy company Apple Inc., but a phishing website created for demon­stra­tion purposes.

Instead of the ASCII character a with Unicode U+0061, the Cyrillic а (U+0430) is used – these two char­ac­ters can hardly be dis­tin­guished by the naked eye but are in­ter­preted as different char­ac­ters by web browsers. Even cer­ti­fic­ates cannot provide security to protect internet users. For modern phishing campaigns, criminals create valid SSL cer­ti­fic­ates with the goal of making their websites look authentic.

Current versions of Chrome and Opera prevent phishing attacks like these by dis­play­ing the ACE string instead of the in­ter­na­tion­al­ised domain on IDNs that mix char­ac­ters from different character sets. Internet Explorer and Microsoft Edge prevent domains like these from being accessed. Firefox, however, does not offer any pro­tec­tion against Punycode phishing.

This is how Firefox users can protect them­selves. In order to reduce the risk that phishing websites pose, Firefox users currently only have the option to prevent Punycode from being trans­lated into IDNs in general. Only two steps are necessary for this temporary solution:

1. Access the con­fig­ur­a­tion editor: Type about:config in the address bar of your web browser to open the Firefox con­fig­ur­a­tion editor.
2. Force Punycode: Find the setting network.IDN_show_punycode and change its value from false to true.

After con­fig­ur­a­tion, Firefox will display in­ter­na­tion­al­ised domains in the address bar as ACE strings.
